Cleanroom Aluminum Accessories

Cleanroom aluminum accessories, also known as cleanroom aluminum profiles, are specialized components designed for controlled environment enclosure systems. SENBO Building Materials supplies these profiles as part of its cleanroom panel and accessory range, with a focus on dimensional accuracy, surface cleanliness, and modular compatibility.

The profiles are manufactured from 6063-T5 aluminum-magnesium-silicon alloy using high-temperature extrusion. Surface finishes include anodizing, electrophoretic coating, and powder coating, each selected for corrosion resistance and a smooth, non-dust-generating finish. Standard profile length is 6 meters per piece, with custom cutting and non-standard specifications available.

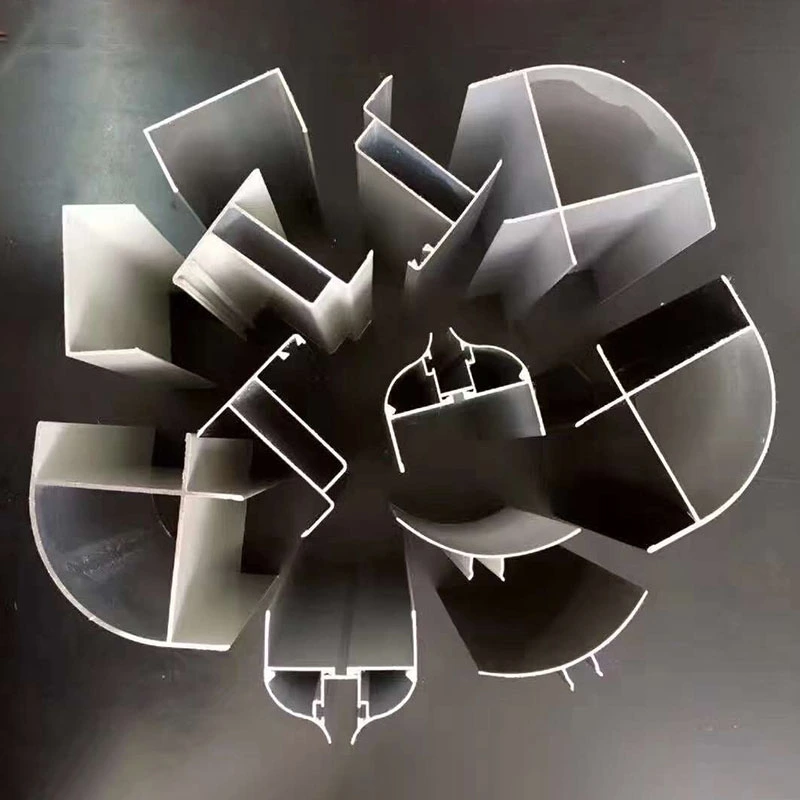

Functionally, the product series covers four main categories: frame connection profiles (I-profiles, H-profiles, T-profiles), sealing and finishing profiles (U-channels, angle profiles, internal and external radiused profiles), door and window profiles (door frames, door leaf sections, window frames), and ceiling suspension profiles (FFU keels, T-suspension beams, "wine glass" suspension beams).

Material and Surface Treatment

The base material is 6063-T5 aluminum alloy, which offers a good balance of strength, toughness, and corrosion resistance. The tensile strength ranges from 150 to 350 MPa. Anodizing produces a hard, wear-resistant surface that is easy to clean and does not shed particles. Powder coating provides a durable finish available in a wide range of colors, while electrophoretic coating offers uniform coverage even on complex profiles.

All surface treatments are designed to meet cleanroom requirements for low particle generation and resistance to common disinfectants. The aluminum alloy itself is non-toxic, odorless, and resistant to moisture and mold growth, which has been demonstrated through long-term use in electronics, pharmaceutical, and food industry cleanrooms.

Dimensional Standards and Product Range

Compiled from industry standards and supplier product data, the following table lists representative specifications for common profile categories.

Performance in Real Installations

1. Modular Compatibility and Dimensional Tolerance

Cleanroom aluminum accessories are designed around a modular concept, with universal specifications such as the 40, 50, and 75 series. Connection slot widths and hole spacings follow industry-standard dimensions, and slot width tolerances are typically controlled within ±0.2 mm. This ensures rapid and tight assembly between different components. Factory assembly verification includes checks for tightness of connections, dimensional coordination, and compatibility of sealing structures, so that profiles do not interfere or misalign after installation.

2. Radius Corner Design for Cleanability

In environments with stringent cleanliness requirements, such as semiconductor cleanrooms and pharmaceutical GMP workshops, wall-to-wall and wall-to-ceiling junctions are finished with aluminum alloy coving with a 50 mm radius (R50). The curved profile eliminates 90-degree angles, which reduces dust accumulation and simplifies cleaning and disinfection. The smooth transition also minimizes airflow turbulence, helping to preserve unidirectional laminar airflow in critical zones. Corner components are secured to wall panels using blind rivets, which allows rapid installation without the particulate contamination associated with welding.

3. Grid Ceiling System for FFU Support

The FFU (Fan Filter Unit) grid framework is the primary structural support for the cleanroom ceiling system. It uses high-strength T-shaped aluminum alloy profiles assembled with standardized connectors (two-way, three-way, four-way, etc.). The 6063-T5 alloy keeps the system lightweight yet strong, and the profile cross-section includes dedicated channels for utility routing. Connectors are galvanized for corrosion resistance. Standard grid modules have an internal opening of 1180×580 mm, which matches FFU installation requirements.

The suspension system includes a 30% safety margin for load-bearing capacity. Hanger spacing is maintained within 1200 mm, and frame leveling is held to a tolerance of less than 1 mm per meter. Compared to traditional welded frames, this pre-assembled approach reduces construction time by over 30% and improves subsequent maintenance efficiency by 50%.

4. Surface Cleanliness and Sealing Performance

After anodizing or powder coating, the surfaces of these profiles are smooth, burr-free, and resistant to dust adhesion. Pre-engineered grooves allow installation of non-metallic components such as sealing strips, PVC caps, and plastic corner guards, which enhance dust-proofing and airtightness. The aluminum alloy material itself is non-toxic, odorless, corrosion-resistant, and moisture-proof, with proven long-term performance in cleanroom environments across multiple industries.

Functional Characteristics

1. Reliable Material Properties. The 6063-T5 aluminum alloy provides uniform texture and a tensile strength of 150–350 MPa. The design service life is at least 15 years under normal cleanroom conditions.

2. Precise Tolerances for Tight Assembly. Slot width tolerance is maintained within ±0.2 mm. Modular design and standardized interfaces ensure a tight fit with complementary materials such as cleanroom panels and sealing strips.

3. Smooth, Non-Dust-Generating Surface. Surface treatments including anodizing, electrophoresis, and powder coating produce a smooth, non-porous finish that is corrosion-resistant and easy to clean. This meets cleanroom requirements for low particle release.

4. Comprehensive Product Range. The series includes channel profiles, angle profiles, radiused corner profiles, door and window frames, and FFU grid systems. Custom dimensions and special shapes can be produced on request.

5. Modular Assembly and Reusability. The profiles are assembled using bolted connections and rivets, eliminating the need for welding. This enables rapid installation, disassembly, and reuse when layout changes are required.

Installation and Compatibility Notes

For wall panel connections: I-beam and H-beam profiles are used as intermediate connectors between panels. Verify that the profile slot width matches the panel edge thickness before installation. Tighten fasteners uniformly to avoid gaps.

For corner finishing: Use R50 or larger radius profiles at wall-to-wall and wall-to-ceiling junctions to eliminate dust traps. Blind rivets are recommended over screws for a cleaner appearance and reduced particulate contamination.

For FFU grid ceilings: Ensure that hanger spacing does not exceed 1200 mm and that the frame is leveled to within 1 mm per meter. The grid opening of 1180×580 mm is standard for FFU modules, but custom sizes can be accommodated.

For door and window frames: Select profiles that match the cleanroom panel thickness. Verify that the sealing groove is compatible with the intended gasket or sealant. After installation, check that the door or window operates smoothly without binding.

Where These Profiles Are Used

1. Electronics and semiconductor cleanrooms: connection and fixation for wall panels and ceilings, as well as FFU grid ceiling systems.

2. Biopharmaceutical GMP facilities: R50 radiused corner profiles for sealing internal and external corners, eliminating dust-trapping dead zones.

3. Hospital operating rooms and ICU wards: installation of door and window frames, and airtight sealing applications.

4. Food processing cleanrooms: cleanroom panel connections, floor channel sealing, and ceiling grid installation.

5. Laboratory clean zones: framework assembly, utility line integration, and sealing.

Frequently Asked Questions

1. What surface treatment is recommended for pharmaceutical cleanrooms?

For pharmaceutical GMP facilities, anodized or powder-coated finishes are commonly used because they are non-porous, easy to clean, and resistant to common disinfectants. Electrophoretic coating can be specified for profiles with complex shapes where uniform coverage is essential.

2. How are radius corner profiles installed without welding?

Radiused corner profiles are typically secured using blind rivets. This method provides a secure connection while avoiding the heat, fumes, and particulate contamination associated with welding. The rivets are installed from the inside, leaving a smooth exterior surface that is easy to clean.

3. Can custom profile lengths be supplied?

Yes. The standard length is 6 meters, but profiles can be cut to specified lengths at the factory. Non-standard cross-sections can also be produced using custom extrusion dies, subject to minimum order quantities and lead time considerations.

4. How do I ensure compatibility between aluminum profiles and cleanroom panels?

Most cleanroom panel manufacturers design their panels to match industry-standard profile slot widths. Before ordering, confirm that the panel edge thickness and the profile slot width are compatible. Our technical team can provide dimensional drawings and samples for verification.

5. What is the load-bearing capacity of the FFU ceiling grid system?

The FFU grid system is designed with a 30% safety margin beyond the expected load, which includes the weight of the FFU units, ceiling panels, and any service loads. Hanger spacing is maintained within 1200 mm to distribute loads evenly. For specific load calculations, please provide the FFU weight and ceiling configuration to our engineering team.
